ZEV 12m Low Entrance BEV Battery Electric City Bus LHD

  • 1
  • 2

Brand Name : ZEVAUTO

Model Number : CDL6121URBEV

Certification : ISO

Place of Origin : Chengdu, China

MOQ : 1

Payment Terms : T/T

Supply Ability : 25000 units/per year

Delivery Time : 25 working days

Packaging Details : nude packing

Product name : 12m Low Entrance BEV Battery Electric City Bus

Passenger capacity : 94/22-46 seats

Wheel base (mm) : 6200

Approach/Departure(º) : 8/8

Max. Grade-ability(%） : 15%

Battery : 350.07 kwh

Driving range : 280-650km

Suspension : Air suspension

Transmission Type : Automatic

Steering Position : LHD

Contact Now

12m Low Entrance BEV Battery Electric City Bus

This is our latest model

Special design for local transport company

400units will serve the coming Chengdu Universiade

Specification

Overall specs Passenger capacity 94/22-46 seats Motor specs Manufacturer ZEV
Vehicle size (mm) 12000*2550*3225 Model --
Wheel base (mm) 6200 Position rear
Front/Rear overhang 2700/3100 Engine type --
Front/Rear tread 2119/1887 Max.power(kw/rpm) 240
Approach/Departure(º) 8/8 Max. torque (N.m/rpm) 2800
Max. Grade-ability(%) 15% Displacement(L) --
Top speed (km/h) 69km/h Fule Electric
Curb weight (kg) 11800 Emission --
Gross weight (kg) 18000
Battery 350.07 kwh,LiFePo4, water cool. with monitoring system.
Charging holder

Single or Double optional.

Full charging 3.1h single / 1.6h double
Driving range 280-650km
Item Specs Remarks
Chassis Front axle 7.5T
Rear axle 13T
Transmission Auto transmission
Suspension

Import air suspension, SACHS shock absorber

ECAS
Steering BOSCH 8098 steering
Braking KNORR brake system, disc brake and maintenance free
Tyre 275/70R22.5 aluminum rim
Battery Maintenance-free type 2*195Ah
electronics AC 32000kcal/h with air purifier
Defroster Electric heater , 4 PTC radiator
Instrument CAN BUS LINE. LCD instrument
Audio-system 2 pcs LCD display
Lights LED combination lights
Monitoring system CCTV system with 10 cameras
Route board Front, rear and side LCD screen
Driver assistance system

ADAS HSA

EPB ASR

ESC CBS

AEBS AutoHold
Bus facilities Body Electro coating.
Passenger door Front aluminum inner swing door
Window Sliding side window, laminated front windscreen and tempered rear-shield
Passenger seat 28 plastic city bus seats with cushion
Interior aluminum-plastic
Floor and floor cover PVC floor, anti-slippery, flame retardant leather
Paint Solid paint
Others Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS

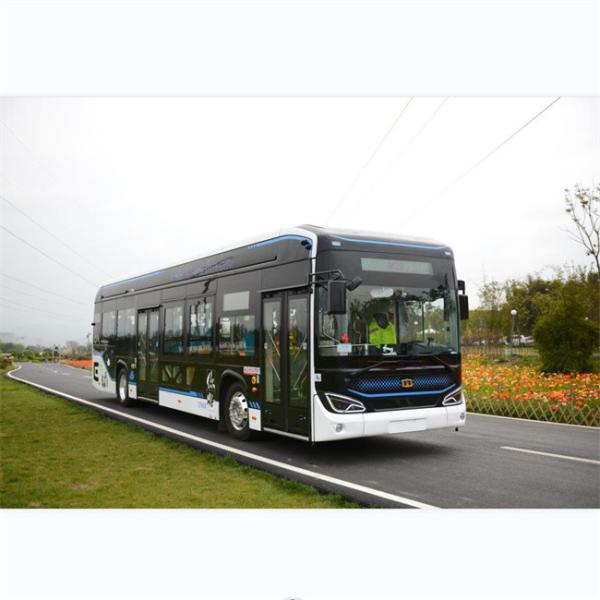

Pictures for reference

ZEV 12m Low Entrance BEV Battery Electric City Bus LHDZEV 12m Low Entrance BEV Battery Electric City Bus LHD

FAQ:

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.

Q: What can we offer?

A:

  • As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
  • Buses and coaches CBU, KD kit, Chassis and Body frames
  • Spare parts including various charger for EV

Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .

Q: What’s the delivery time?

A: Normally 20-35 workdays.

Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
